Main features:

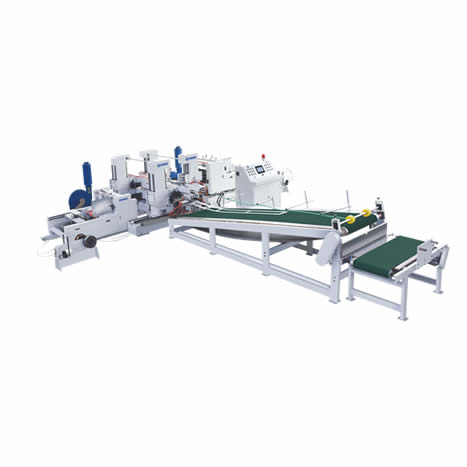

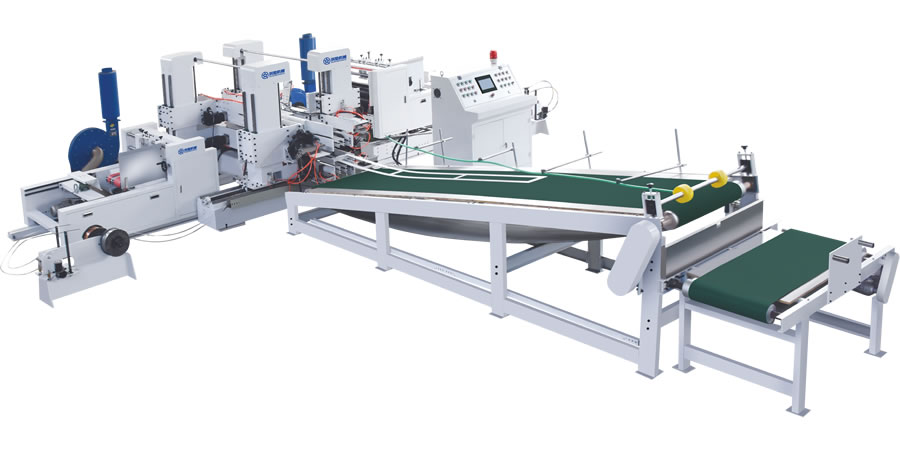

1. This machine is a dual piece nail box machine, which reduces labor intensity and improves production efficiency
2. This machine can nail single or double nails
3. The paper feeding section automatically counts, making it easy to bundle finished products when they are sent out
4. Suitable for three-layer, five layer, and seven layer cardboard boxes
5. Automatic wire feeding system, no wire alarm
6.20KG large flat wire reel and small flat wire reel can be used interchangeably
7. This machine is controlled by a computer touch screen, and the computer screen displays fault instructions
8. This machine adopts a well-known brand servo drive, which is precise and accurate
9. Brand servo system operation, more stable and accurate nail spacing
10. The entire set of nail heads are made of special steel and precision machined by computer numerical control
11. The bottom mold and blade are made of imported tungsten steel (wear-resistant)
12. All pneumatic components, switches, electrical appliances, belts, drivers, etc. are made of well-known brands
主要技术参数：

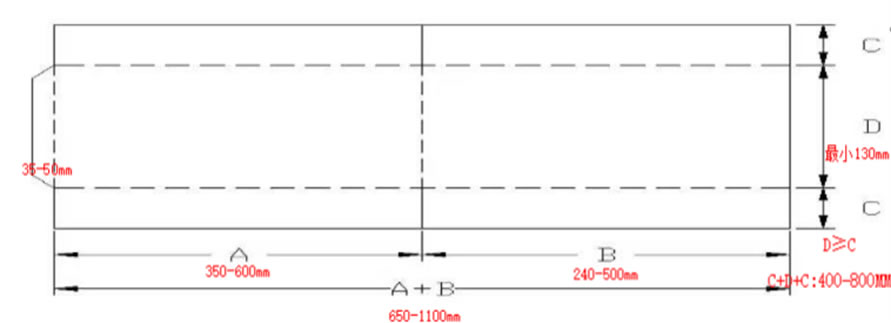

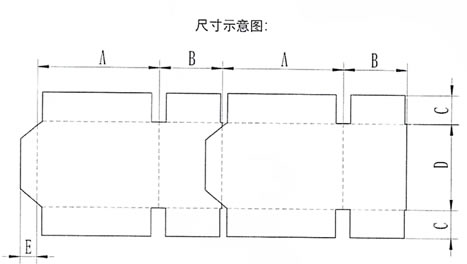

Maximum size of finished cardboard box（A+B）
1050mm
Minimum size of finished cardboard box（A+B）
550mm
The maximum paper length, i.e. A
700mm
Minimum paper length, i.e. A
350mm
The maximum paper width, i.e. B
500mm
Minimum paper width, i.e. B
200mm
Paper tongue sticking, also known as E
30mm~40mm
Paper height (C+D+C)
340mm~880mm
machine speed
1400-2200 boxes/hour (speed varies depending on the cardboard box)
Machine total length (with box flipping machine)
11500mm
Overall width of the machine
3000mm
Total weight of the machine
7000Kg
The smallest first nail
25mm(Uncovered box)
Applicable cardboard
A. B, C type 3-layer or 5-layer corrugated cardboard
Nail thread specifications
Usually 17 # and 18 # nail lines
Operating power of the whole machine
13KW
(Instructions for ordering 7-layer boards)
-
